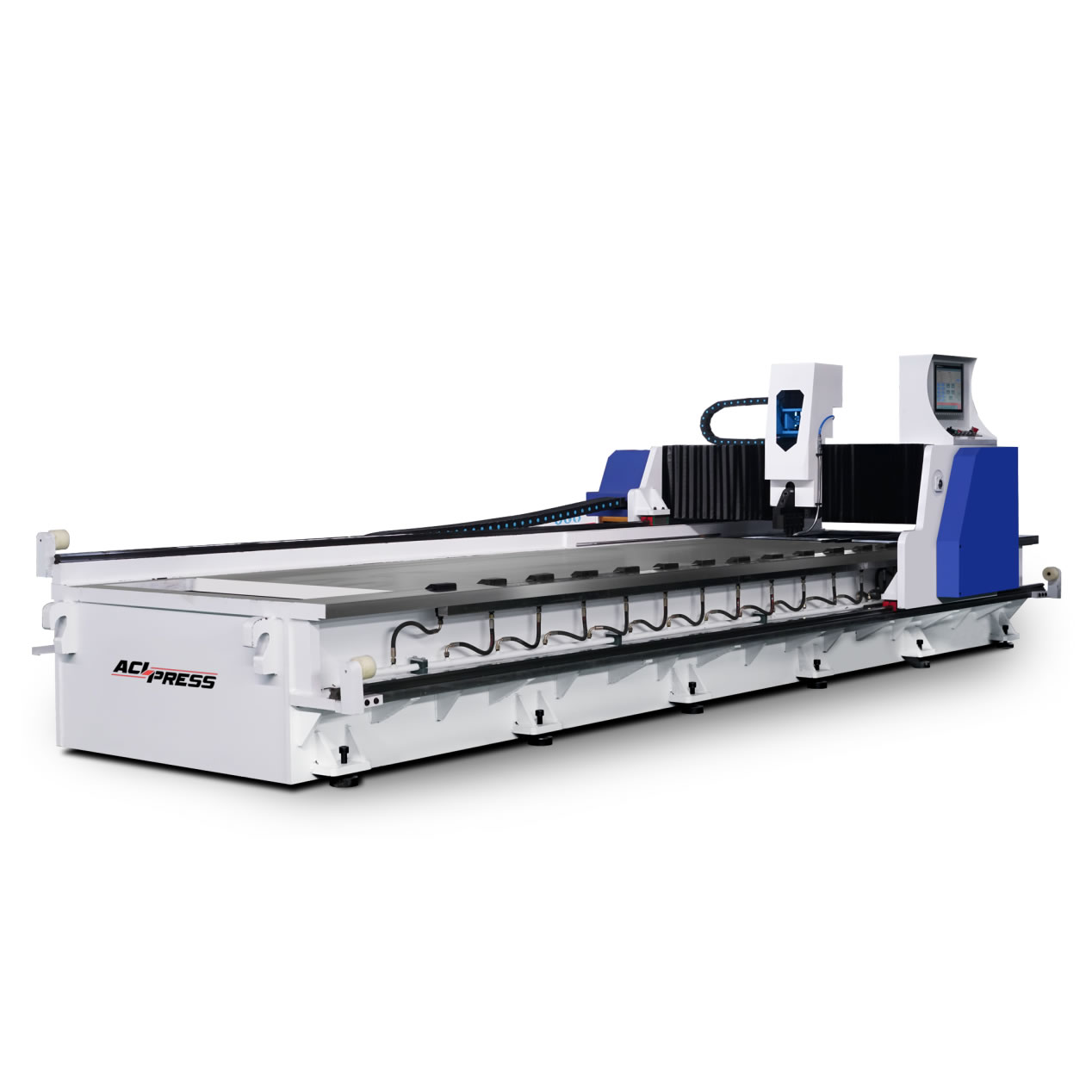

V Grooving Machine
Full servo CNC V grooving machine

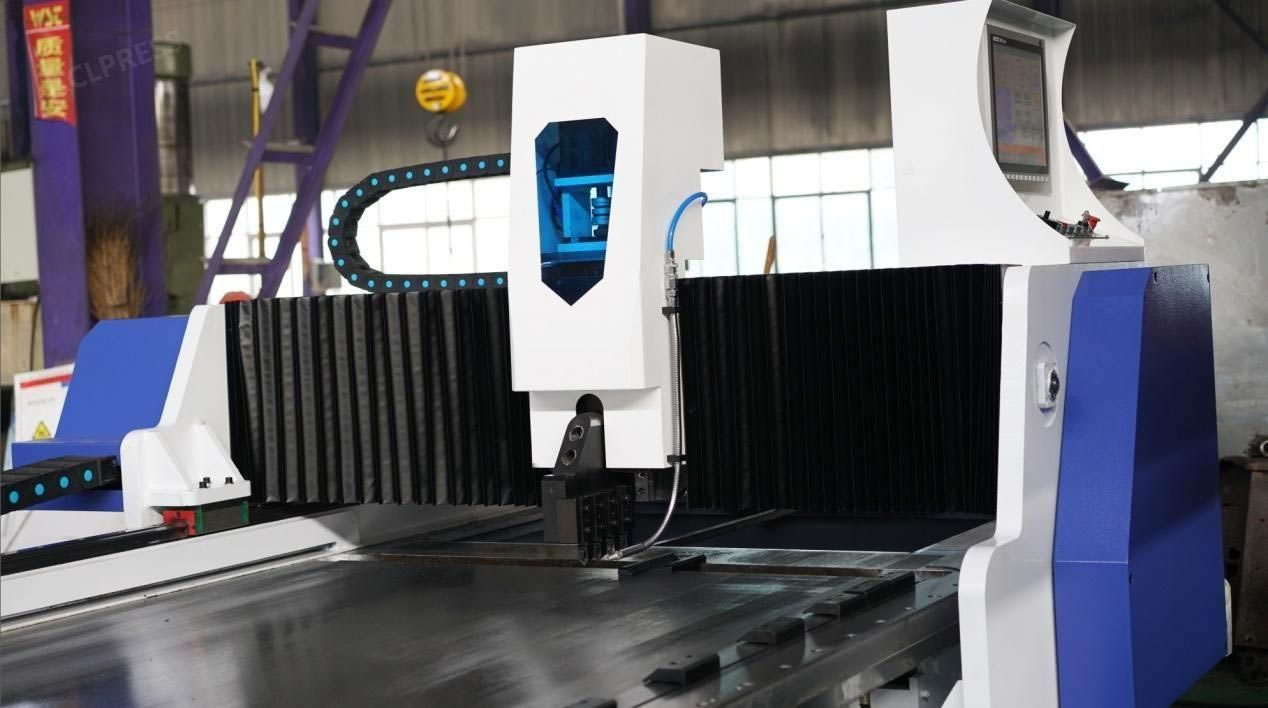

Full servo gantry
Advanced CNC system
High precision
Easy operation
No noise
No vibration
- Features
- Details
- Specifications
- Inquiry
- Related Products
ACLPRESS V grooving machine is utilized for processing V-shaped grooves, U-shaped grooves, and other irregular grooves on sheet metal parts, including stainless steel, aluminum, copper, iron, rubber, acrylic, and other special plates. It is particularly suitable for processing V-slots before bending sheet metal parts.

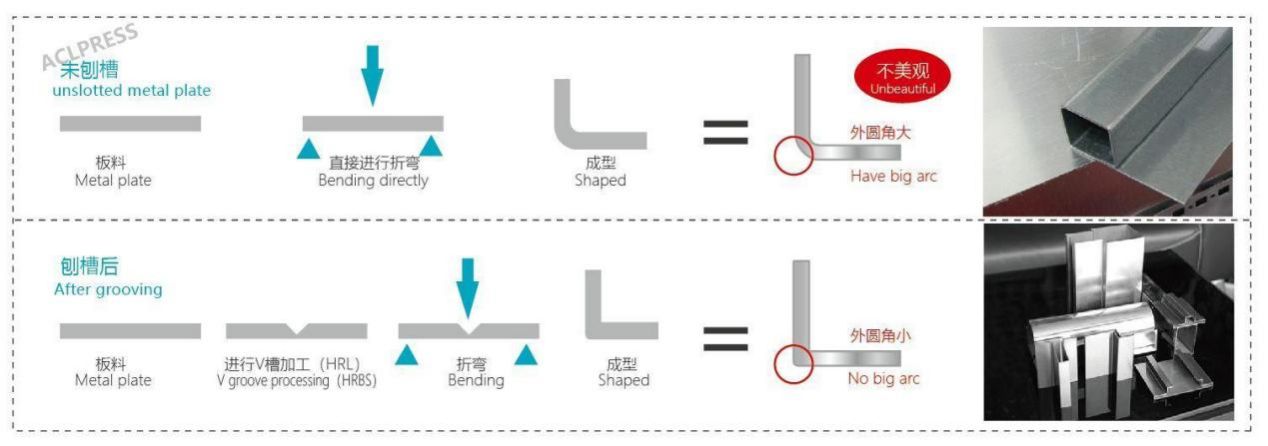

Advantages with V grooved metal plate

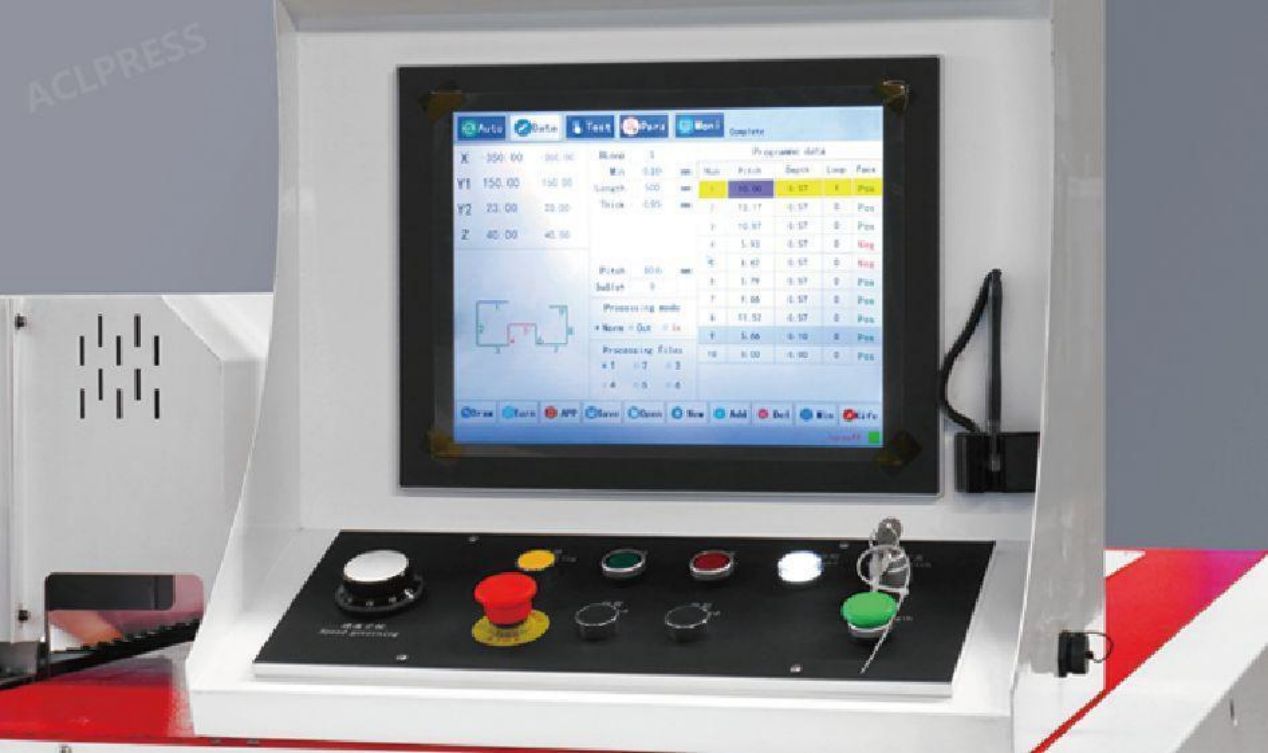

Advanced CNC system
Thick metal frame with a high strength

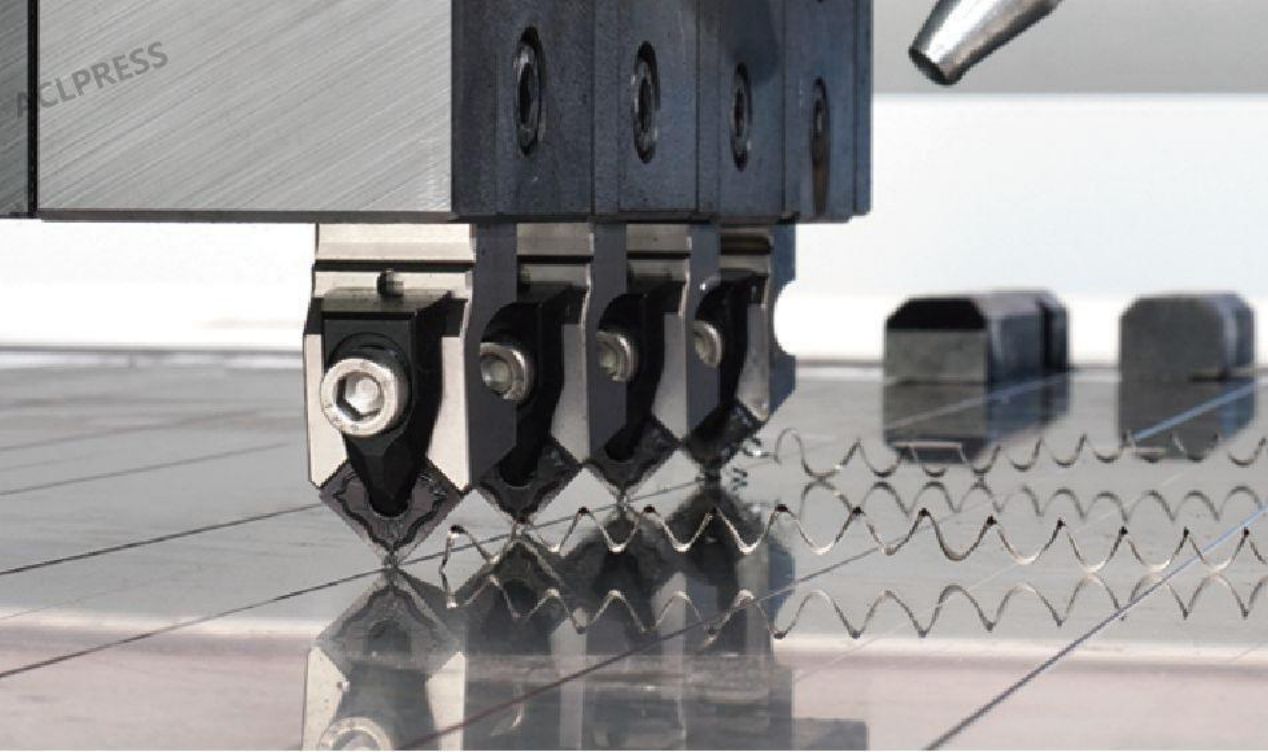

Stable and durable knife holder
Thick frame plate with high enough strength
| Gantry Type CNC Grooving Machine | KCV-1250×3200 | KCV-1250×4000 | KCV-1500×3200 | KCV-1500×4000 | |
| Max Grooving Width | mm | 1250 | 1250 | 1500 | 1500 |
| Max Grooving Length | mm | 3200 | 4000 | 3200 | 4000 |
| Grooving Thickness | mm | 0.4-6 | 0.4-6 | 0.4-6 | 0.4-6 |
| Grooving Speed | m/min | 5-70 | 5-70 | 5-70 | 5-70 |
| X axis Min Settiing Value | mm | 0.01 | 0.01 | 0.01 | 0.01 |
| X axis Positioning Accuracy | mm | ±0.05 | ±0.05 | ±0.05 | ±0.05 |
| Y axis Min Settiing Value | mm | 0.01 | 0.01 | 0.01 | 0.01 |
| Y axis Positioning Accuracy | mm | ±0.05 | ±0.05 | ±0.05 | ±0.05 |
| Z axis Min Settiing Value | mm | 0.01 | 0.01 | 0.01 | 0.01 |
| Z axis Positioning Accuracy | mm | ±0.03 | ±0.03 | ±0.03 | ±0.03 |
| Main Motor Power | kW | 5.5 | 5.5 | 5.5 | 5.5 |
| Dimensions(L×W×H) | mm | 5200×2300×1680 | 6000×2300×1680 | 5200×2600×1680 | 6000×2600×1680 |
| Weight | kg | 7200 | 8100 | 8000 | 9000 |
