Single Extension Telescopic Forks

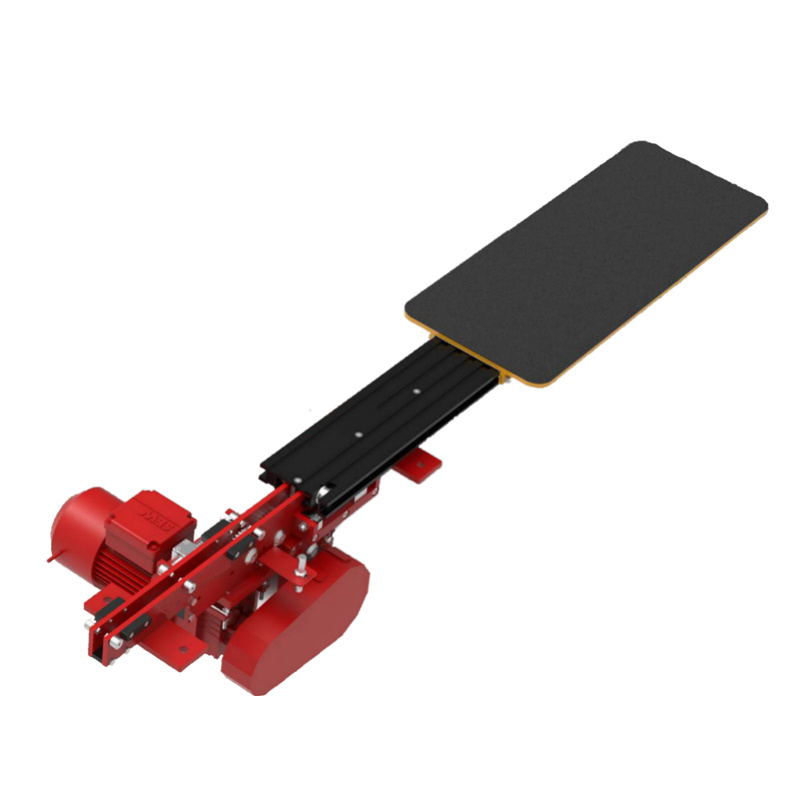

The Single-Motor, Single Extension telescopic fork serves as a core component of intelligent warehousing systems.

Details
Inquiry
Related Products

Comprising fork arms, a drive mechanism, guide rails, and a control system, it utilizes a single-motor drive and a three-stage telescopic structure. This design offers numerous advantages, including a streamlined structure, precise operation, high space utilization efficiency, and safe, stable performance. Suited for applications in automated high-bay warehouses, logistics distribution centers, and manufacturing production lines, the system can reduce warehouse aisle space by 20% to 30%, lower operation and maintenance costs, and accommodate the storage and retrieval of goods of various specifications.

FH Fork thickness (mm)	LS Cargo Length (mm)	L Fork Length (mm)	S1/S2 single/double deep stroke (safety stroke 30mm)	Q Load (KG)	Single deep Load Disturbance(mm)
					±
					10%
80/175	1000	1200	1250+30/2350+30	1500	16
	1100	1200	1300+30/2500+30	1500	16
	1150	1250	1350+30/2600+30	1500	16
	1200	1300	1400+30/2700+30	1200	16
	1250	1350	1450+30/2800+30	1200	17
	1300	1400	1500+30/2900+30	1000	17
	1350	1450	1550+30/3000+30	1000	17
	1400	1500	1600+30/3100+30	900	16
	1450	1550	1650+30/3200+30	800	17
	1500	1600	1700+30/3300+30	700	16

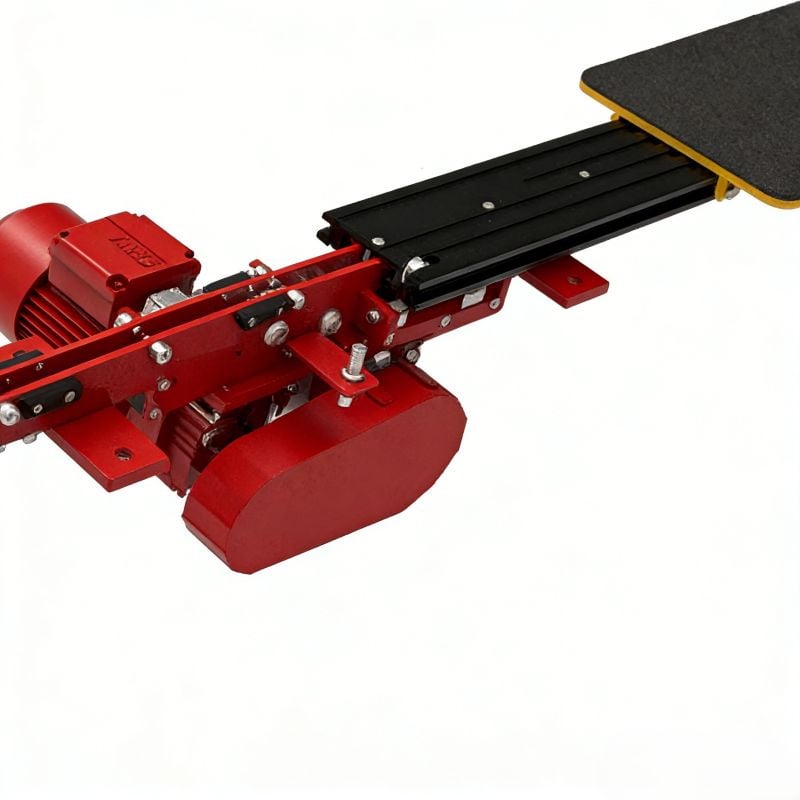

single 1.jpg

Q: Do you offer custom packaging?
A: Absolutely! We offer full OEM and ODM services. From size and material to colors and custom branding/logos, we can tailor the packaging for any product to match your brand.

Q: How do you handle shipping and delivery?
A: Because our machinery and equipment are typically large, we primarily arrange secure sea freight to ensure cost-effective and safe delivery.

Q: Do you offer after-sales support?
A: Yes, fully! We have a dedicated team covering pre-sales consultation, order tracking, and post-purchase technical support—all accessible online whenever you need assistance.

Q: Can I order a custom sample first?
A: Yes! We offer customizable paid samples. Just share your detailed requirements with us, and we'll craft a sample to your exact specifications.
