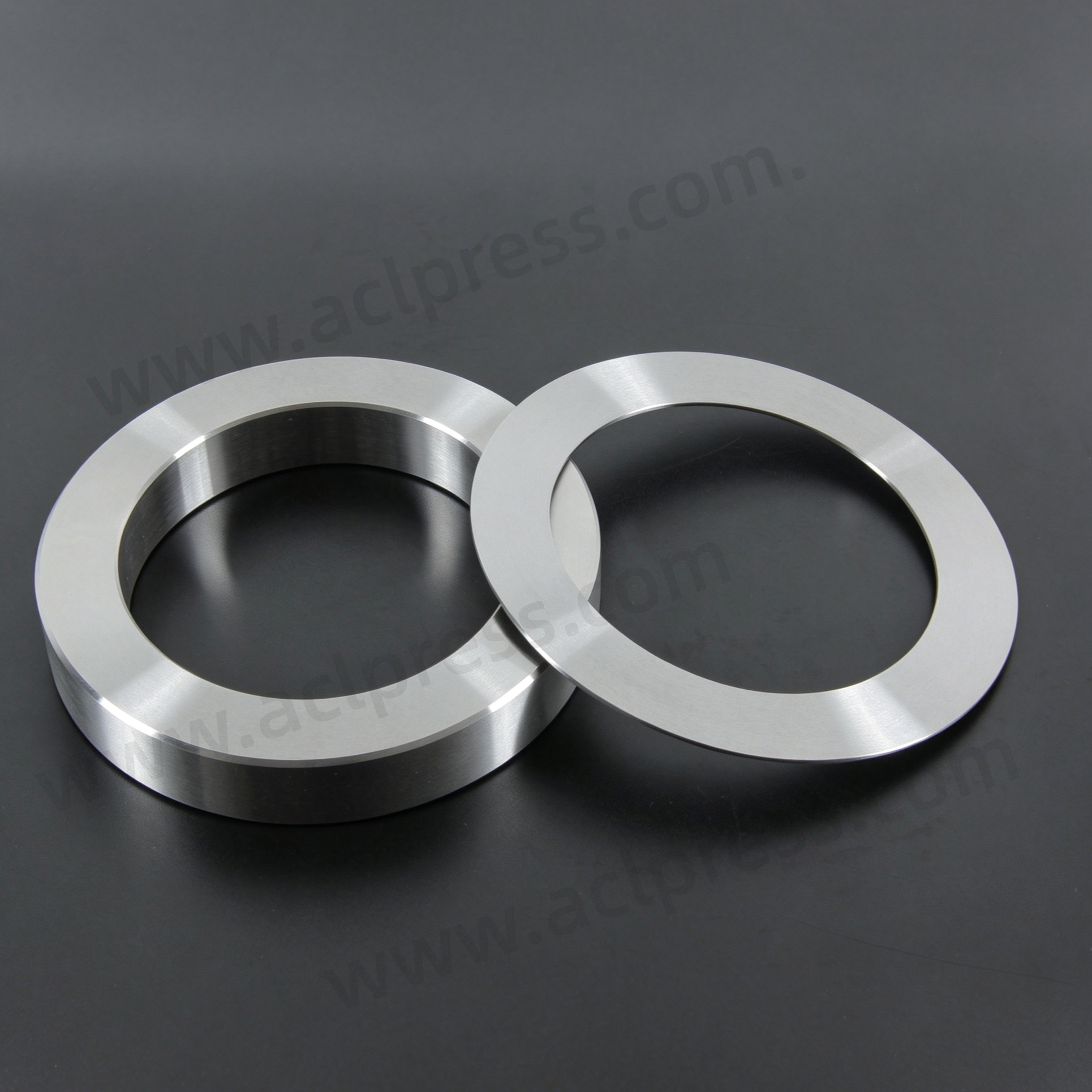

Round Slitting Line Knife
Slitter blades are the core components of slitter and rewinder machine, and here are used for slitting and rewinding stainless steel, silicon steel, pickled coils, copper plates, aluminum plates, non-ferrous metals, coated, and colored coils. These blades are made from materials such as 9CrSi, D2, H13, LD, 1.2746, M2, WC and etc. Through vacuum or salty bath heat treatments, copious cooling, and times tempering, the blades can mostly performance the materials' feartures.
- Details
- Inquiry
- Related Products
Slitter blades are processed using ultra-precision surface grinding machines, achieving a thickness and flatness precision within 0.002 mm, with a surface smoothness of Ra 0.2 and edge sharpness that meets high wear-resistance standards.
The blades need to be adjusted with sleeves, shims, or rubber-rounded spacers to set the distance and gap. Spacer thicknesses range from 0.3 to 200 mm, also with a tolerance within 0.002 mm, and a hardness of HRC 45–55 when made of C45, 40Cr, or GCr15 materials.
| POPULAR SIZE | |||
| Φ95*Φ55*2 | Φ105*Φ32*3 | Φ105*Φ52*5 | Φ120*Φ60*5 |
| Φ160*Φ80*5 | Φ200*Φ100*5 | Φ210*Φ100*5 | Φ220*Φ120*5 |
| Φ380*Φ240*10 | Φ400*Φ260*10 | Φ440*Φ280*30 | Φ500*Φ300*40 |
| Φ550*Φ380*40 | Φ650*Φ420*50 | Φ800*Φ500*60 | Φ1200*Φ600*70 |
Q:Can you produce customized blades?
A:Yes, we specialize in custom blade manufacturing. We can tailor blade dimensions, tooth profiles, materials, and surface treatments according to your drawings, samples, or technical requirements.
Q:What certifications do your products have?
A:Our products are certified with ISO 9001, material test reports (SGS) etc. We also provide material certificates, hardness reports, and dimension inspection reports.
Q:Do you offer after-sales support?
A:We provide full after-sales service including installation guidance, usage advice, maintenance tips, re-grinding & repair support. You can reach us via Whatsapp message, email, or phone etc. We reply promptly during working hours.
