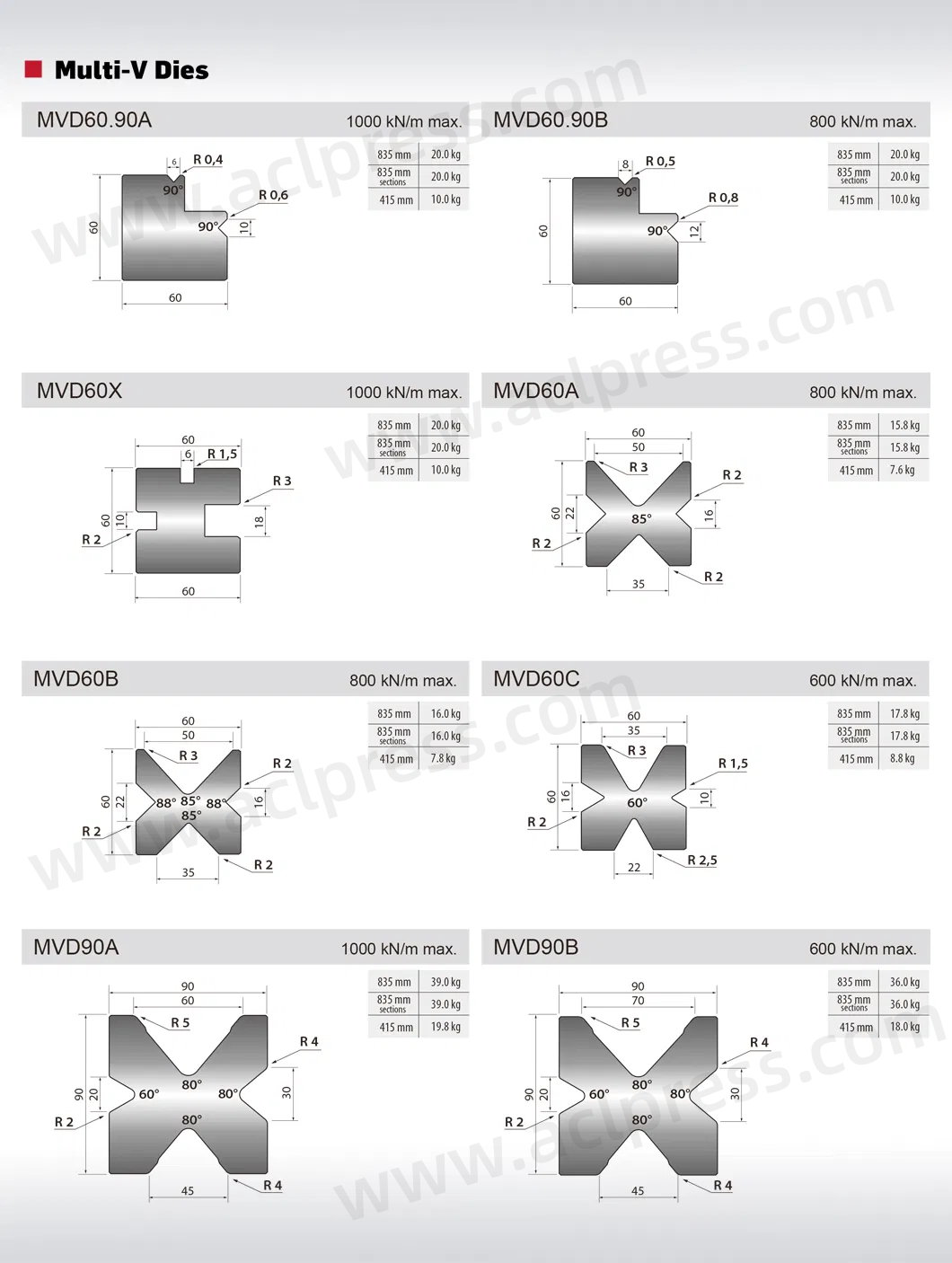

Multi-V Die
A Multi-V Die (or Multi-V Bottom Die) is a commonly used bottom die on a press brake. Unlike a single-V die that only has one V groove, a Multi-V Die usually has a polyhedral structure (like square, hexagonal, or custom multi-groove square bars) with multiple V grooves of different widths or angles on different sides or on the same section.
By rotating, flipping, or moving the bottom die as a whole, operators can use the same die to handle different sheet thicknesses or bending radii.
- Details
- Inquiry
- Related Products
Optional: Laser hardening HRC57-58

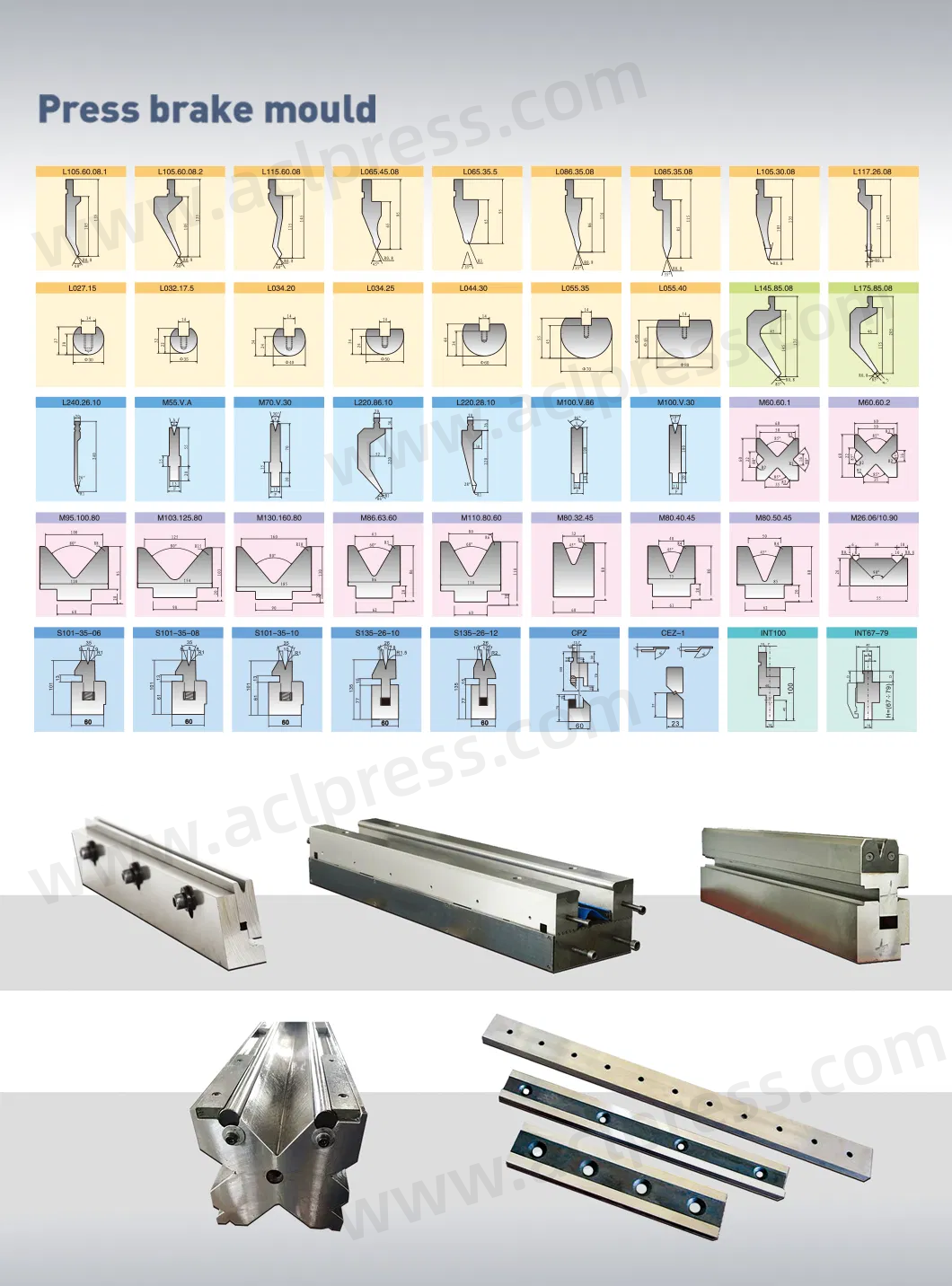

Range: Special Forming Tool, Promecam-Amada-European style Punch and Die, Trumpf Wila style Punch and Die, Panel Bender Tool, Crowning Worktable, Hydraulic Punch Clamping System, Press Brake Accessories, Press Brake Tooling Cabinet, RollBend Die, Adjustable V Opening Die, Punch Adapter, Punch Clamp Holder, Non-Scratch Bending Film.
| Heat treatment type | High-frequency quenching/Overall heat treatment | Function | Bending metal sheets | Material | T8 T10 C45 40Cr 42CrMo 55SiCr 9CrSi Cr12MoV D2 DC53 |
| Applicable machine tool | Press Brake Machine | Is it customized | Yes | Product Features | High strength, long life |
| Technical Requirements | High overall machining accuracy required | Applicable machinery | Press Brake Machine | Types of Blades | Press brake blade |
| Applicable fields | Mechanical factories, sheet metal factories, electrical appliance factories, etc. | Land for sale | Global | Hardness | 58 |
| Imported or not | Yes | After-sales method | Online | Shipping time | 7 days |
Q:How to get the most suitable product and best price?
A:Please tell us what material you want to apply the moulds to bend, the drawing, dimension and other more information.
A:Different material can be made of different hardness, different work-piece need different hardness, from 40HRC to 98HRC. We can provide suitable suggestion based on your requirement.
