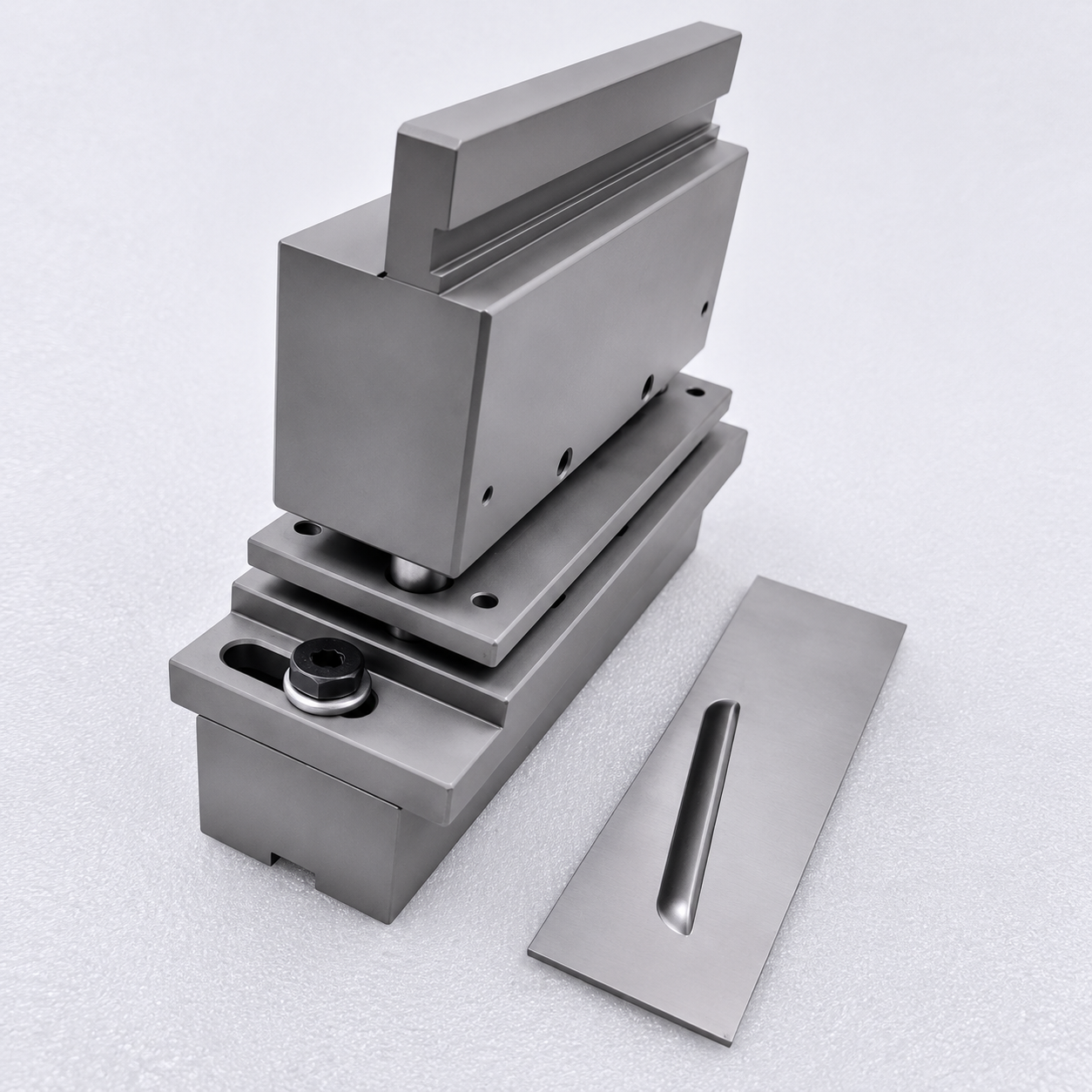

Louver Bending Die
In sheet metal fabrication and bending (Press Brake) processes, a Louver Bending Die (usually referring to a louver mold or louver stamping/forming die) is a specialized tool used to stamp and stretch louver-style ventilation holes into metal sheets.
- Details
- Inquiry
- Related Products
Unlike the usual 'V-shaped bending,' louver molds combine shearing, stretching, and forming in one process. During a stroke of the press brake, the mold can locally cut the sheet and push it up at the same time, creating a semi-closed louver structure with a specific angle and height (usually used for air intake, heat dissipation, or decorative purposes).
Optional: Laser hardening HRC57-58
Press Brake Tooling Range: Special Forming Tool, Promecam-Amada-European style Punch and Die, Trumpf Wila style Punch and Die, Panel Bender Tool, Crowning Worktable, Hydraulic Punch Clamping System, Press Brake Accessories, Press Brake Tooling Cabinet, RollBend Die, Adjustable V Opening Die, Punch Adapter, Punch Clamp Holder, Non-Scratch Bending Film.
| Product Name | Louver Bending Die | Hardness | 45-50HRC |
| Material | 40Cr 42CrMo 55SiCr 9CrSi Cr12MoV D2 DC53 | Package | Wooden crate with soft film layers inside |
| Place of Origin | China,Anhui | Product Certification | ISO 9001:2015 |
| Size | Customizable sizes | Standard | AMADA, European, Segmented, Arc, International Standard, Three Point, Non-Streaking, Adjustable Groove, Special, etc |
