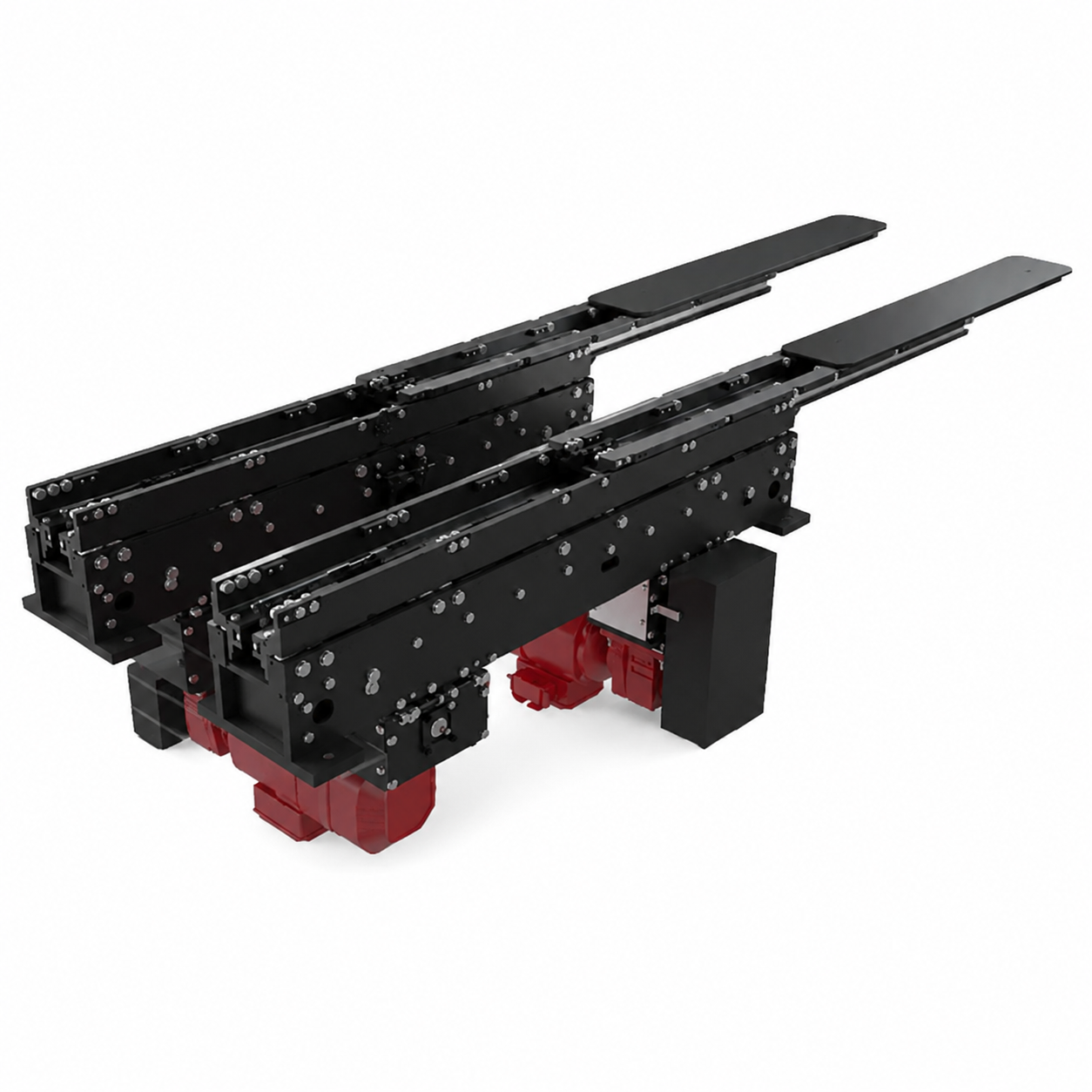

Double Extension Telescopic Forks

At its core, the single-motor, double extension telescopic fork features a "single-motor drive + four-section fork body" configuration. Through a three-stage telescopic mechanism, it achieves an extension stroke equal to twice its retracted length.

Inquiry

Details
Inquiry
Related Products

Designed for high-density storage environments-such as cold storage facilities and narrow-aisle warehouses-it can boost storage density by 30% to 50%. The single-motor design offers a 20% to 30% cost reduction compared to dual-motor systems, while the 42CrMo carbon steel fork body ensures high reliability with a failure rate of less than 0.5%. Furthermore, it supports operation across a wide temperature range of -40°C to 80°C; it can be seamlessly integrated into equipment such as CTUs and MiniLoad systems, and operates in conjunction with WCS/WMS platforms, making it the preferred solution for the automated handling of light-to-medium loads (50 kg to 500 kg).

LS Cargo Length	L Fork Length	S1/S2 single/double deep stroke (safety stroke 30mm)	Q Load (KG)	Single deep Load Disturbance(mm)	Dual deep Load Disturbance(mm)


1000	1200	1250+30/2350+30	1500	16	44
1100	1200	1300+30/2500+30	1500	16	45
1150	1250	1350+30/2600+30	1500	16	46
1200	1300	1400+30/2700+30	1200	16	47
1250	1350	1450+30/2800+30	1200	17	48
1300	1400	1500+30/2900+30	1000	17	49
1350	1450	1550+30/3000+30	1000	17	50
1400	1500	1600+30/3100+30	900	16	51
1450	1550	1650+30/3200+30	800	17	52
1500	1600	1700+30/3300+30	700	16	55
